Breas Z-2 Travel Cpap

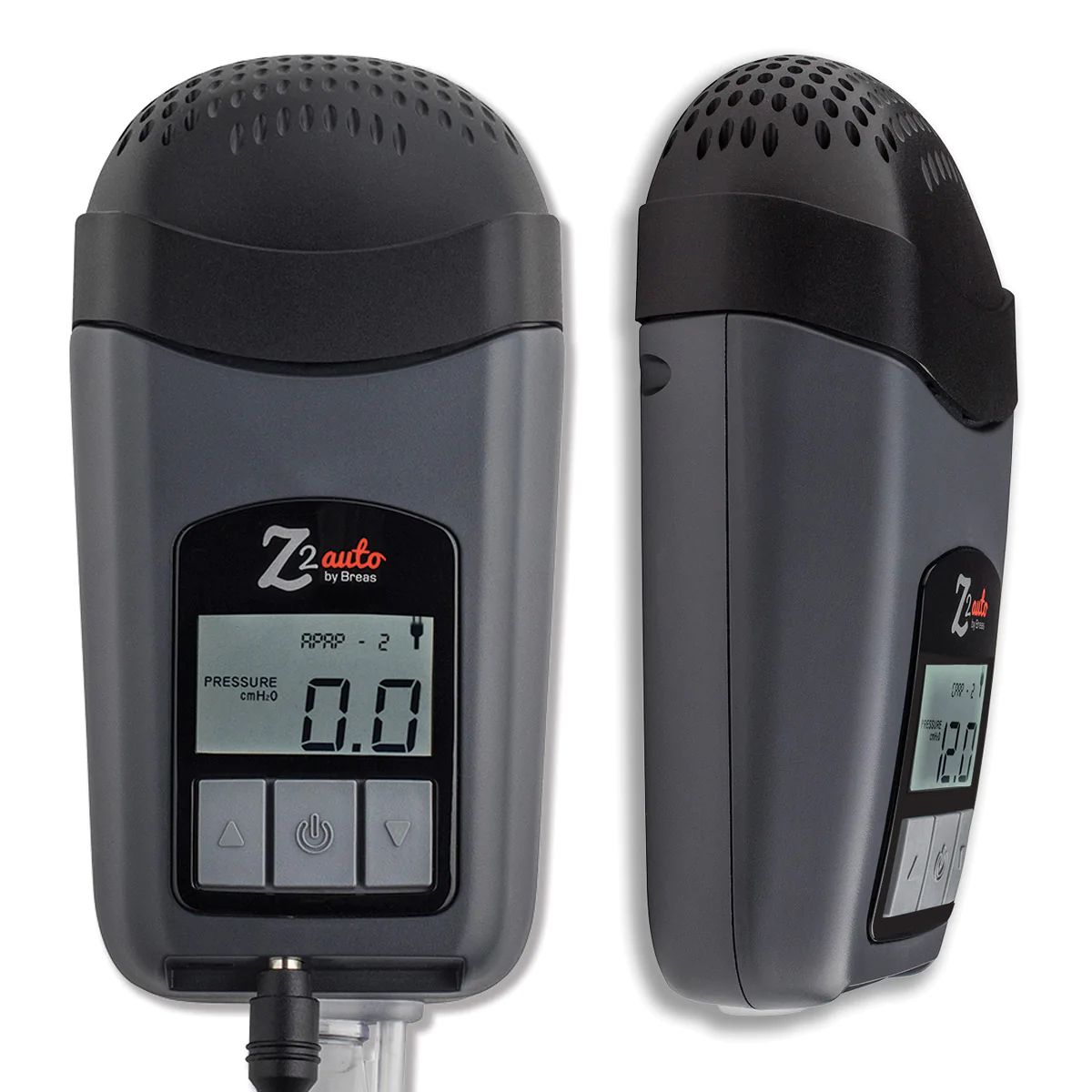

The Z2 Auto – Ultra-small, lightweight, auto-adjusting CPAP- perfect for travel.
The Z2 Auto CPAP builds on the form of the Z1 with an improved, quieter motor, and an Auto Start / Stop Feature. We also added a free Qlite to muffle the noise at the mask. At just 6.48” x 3.30” x 2.02” and 10.5 oz, it fits easily into your bag and won’t weigh you down. It’s perfect for taking your sleep apnea therapy with you when you travel.
No special mask required: The Z2 Auto does not require a special mask or tube for use. You can use your favorite mask as long as it does not have a proprietary connection.
Integrated Battery Option: For travel off the grid or where power is limited, add on the optional PowerShell® for a fully integrated battery option. The PowerShell’s Extended Life Battery is a rechargeable, lithium ion battery which provides a full night’s therapy on a single charge.
Free Nitelog® app lets you download your sleep data to any iOS or Android mobile phone or tablet so you can track your data or share it with your healthcare provider.
*No Mask Included*
- Programmable as auto adjusting pressure or fixed pressure CPAP
- Pressure range 4-20 cm H2O
- Z-Breathe® comfort feature
- Auto Start/ Stop Feature
- Weight: 10.5 oz
- 6.48″ x 3.30″ x 2.02″
- FAA compliant for in-flight use
- Nitelog app via Bluetooth to iOS and Android mobile devices
- Integrates with Powershell to provide battery powered CPAP treatment
- No special mask required
- Bright LCD display
- Programmable ramp mode for gradual acclimation to prescribed pressure
- Power supply converts voltage ranging from 100-240 volts automatically
- Internal memory stores sleep data
Technical Specifications
30W Power Adapter
Unit Input range 100–240V, 50–60Hz
Typical power consumption 20W (30VA)
Maximum power consumption 35W (70VA)
Operating temperature 41ºF to 95ºF (5ºC to 35ºC)
Operating humidity 10–80% Relative Humidity, Non-Condensing
Operating altitude Sea level to 8,000 ft (2400 m)
Operating atmospheric pressure 101 to 75.3 kPA
Storage and transport temperature -4ºF to +140ºF (-20ºC to +60ºC)
Storage and transport humidity 10–95% Relative Humidity, Non-Condensing
Storage and transport altitude No limit
Storage and transport atm. pressure No limit
Electromagnetic compatibility Compatible with IEC 60601-1-2
Aircraft use Complies with RTCA DO-160G Standard for use in flight
IEC 60601-1 classification Class II (double insulation), Type BF
Available modes Standby, CPAP, Auto-CPAP and CPAP/Auto-CPAP with Ramp
Sound pressure level 26 dBA
Nominal dimensions 6.48” X 3.30” X 2.02” (16.46 cm X 8.38 cm X 5.13 cm)
Weight 10.5 oz. (299 g)
Housing construction Flame retardant engineered thermoplastic
Supplemental oxygen Not for use with oxygen
Standard air filter Polyester
Air outlet The 22 mm air outlet complies with ISO 5356-1
Performance Specifications
Operating pressure range 4 to 20 cm H2O
Maximum single fault steady pressure 30 cm H2O
Pressure accuracy ±(0.6 cm H2O + 4% of the measured reading)
Bluetooth Specifications
Panasonic Electronic Components
Bluetooth Module + BLE HCI W/ANTENNA
FCC ID T7V1315
FCC Compliance FCC PART 15 SUBPART C
Frequency 2400-2483.5 MHz
Modulation or Protocol Bluetooth Low Energy, V4.0
Over the air data rate 1 Mbit/s
Application throughput 0.27 Mbit/s
Security 128-bit AES with Counter Mode CBC-MAC and application layer user defined
Robustness Adaptive frequency hopping, Lazy Acknowledgement, 24-bit CRC, 32-bit Message Integrity Check
Latency (from a non-connected state) 6ms
Power-Output 10dBm
Sensitivity -93dBm
Standard IEEE 802.15.1
